Hot Rolled Steel Channel (C-Channel / U-Channel)

Hot Rolled Steel Channel (U-Channel / C-Channel) | ASTM A36 / Q235B / S235JR | GB/T 706 UPN & UPE Steel Channel Profile for Construction, Vehicles & Solar Racking - [SONGCHENSTEEL]

01. Product Overview

Our Hot Rolled Steel Channel, also referred to as C-channel or U-channel, is a versatile open structural profile defined by its U-shaped cross-section — a vertical web with two horizontal flanges extending from the same face. This asymmetric geometry provides a unique combination of properties: the flat back face allows direct mounting against walls, plates, or other structural members, while the open front face enables easy access for bolted connections and service routing.

Available across multiple international dimensional standards — including Chinese GB/T 706 (designated by "#"), European EN 10279 (UPN with tapered flanges and UPE with parallel flanges), American ASTM A6 (C-shapes), and Japanese JIS G3192 — our channels deliver dependable flexural and compressive strength for applications ranging from truck chassis rails and trailer frames to solar panel support structures, stair stringers, equipment mounting bases, and building purlins.

With web heights spanning 50mm (5# / UPN 50) to 400mm (40# / UPN 400) and grades from general-purpose Q235B/A36 to high-strength Q355B/A572-50, our steel channels provide the exact profile, strength, and surface finish your fabrication demands.

02. Key Features & Advantages

l  Flat-Back Mounting Geometry

Ø  Feature: U-shaped cross-section with one flat outer web face and two perpendicular flanges on the opposite side.

Ø  Advantage: The flat back surface bolts or welds directly to walls, floor slabs, equipment frames, or other steel members without requiring shims or standoffs.

Ø  Benefit: "Drop-in Installation." Eliminates the alignment and shimming work required with I-beams or angles when mounting to flat surfaces, reducing erection labor by up to 15-20%.

l  Versatile Open-Side Access

Ø  Feature: One side fully open between the two flanges, with no obstructing web.

Ø  Advantage: Bolts, nuts, and tools can be inserted and tightened from the open side; cables, pipes, and conduit can be routed through the channel cavity.

Ø  Benefit: "Service-Ready Design." Simplifies post-installation access for tightening connections, routing utilities, and performing inspections — particularly valuable in vehicle frames, cable trays, and equipment skids.

l  Dual Flange Profile Options

Ø  Feature: Available with tapered flanges (UPN / GB/T 706 standard) for traditional applications, or parallel flanges (UPE / some C-shapes) where bolted connection efficiency is paramount.

Ø  Advantage: Tapered-flange channels (UPN) are compatible with legacy structural designs and standard clamp hardware; parallel-flange channels (UPE) eliminate the need for tapered washers and simplify stiffener fabrication.

Ø  Benefit: "Right Geometry, Right Connection." Choose the flange profile that minimizes your connection fabrication cost — tapered for crane rail clamps and traditional structures, parallel for modern bolted frames.

l  Built-In Corrosion Protection Options

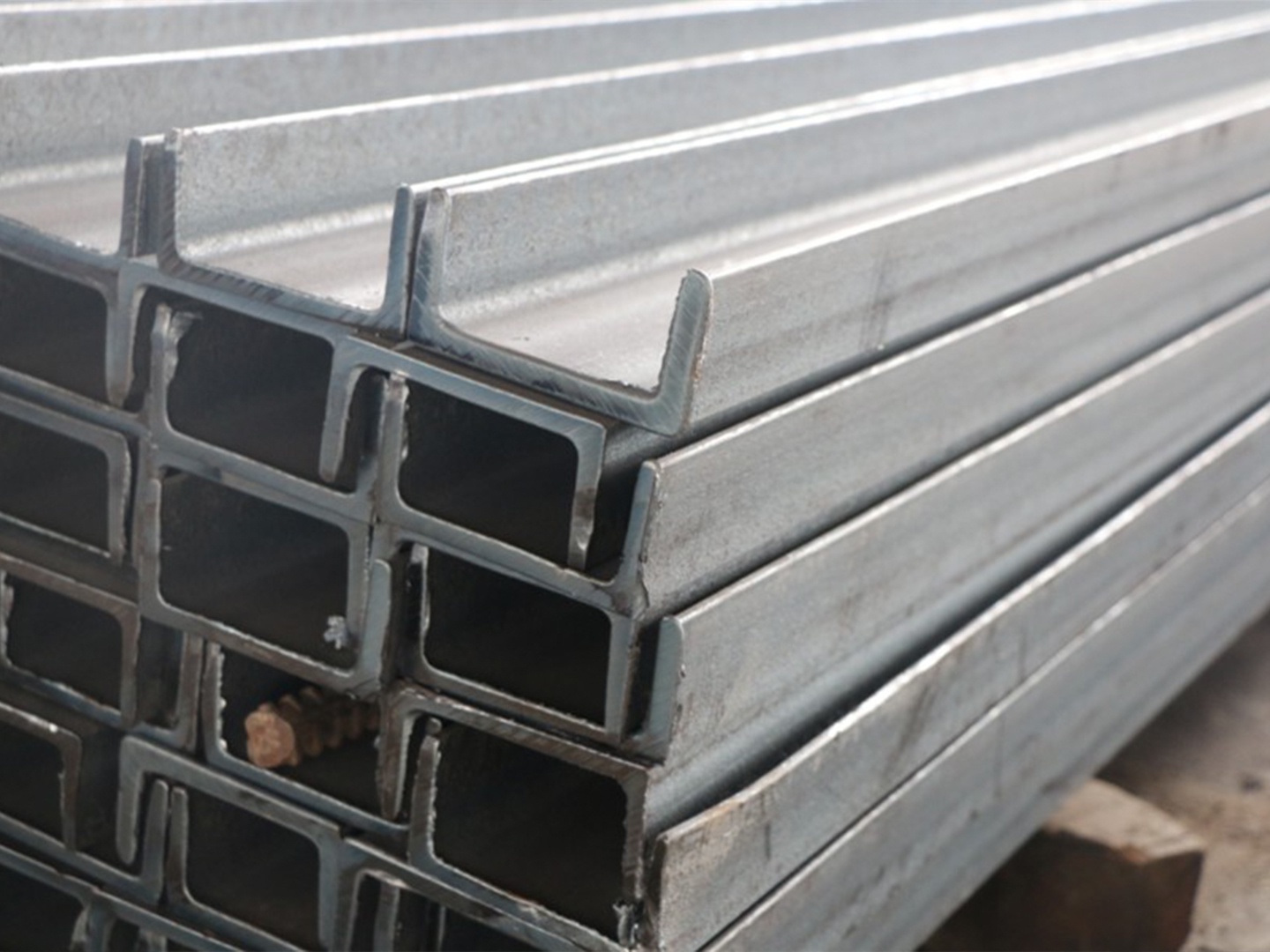

Ø  Feature: Standard mill finish with optional pre-treatment through to shot blasting (Sa 2.5) plus shop primer or hot-dip galvanizing to ISO 1461.

Ø  Advantage: The open U-shape drains water naturally and provides full access for coating application — unlike closed box sections, every surface is reachable for inspection and touch-up.

Ø  Benefit: "Zero Hidden Corrosion." Channel geometry combined with full hot-dip galvanizing delivers decades of maintenance-free service, even in coastal solar farms, seaside walkways, and exposed vehicle underbodies where trapped moisture would corrode hollow sections from within.

03. Technical Specifications

04. Versatile Applications

l  Vehicle Chassis & Trailer Frames

Steel channels — particularly Q355B and A572-50 high-strength grades — serve as the primary longitudinal side rails and transverse crossmembers of heavy truck chassis, semi-trailer frames, and flatbed bodies. The flat back face and wide open side allow for straightforward bolting of suspension brackets, axle mounts, and decking, while the open profile simplifies underbody inspection and maintenance access.

l  Solar Panel Racking & Support Structures

Hot-dip galvanized channels (typically UPE or C-shapes with parallel flanges) are the structural backbone of utility-scale ground-mount solar arrays and rooftop PV systems. Channels serve as the primary horizontal rails to which solar panels are clamped, as well as the vertical support columns and diagonal bracing of the underlying support structure. The open U-profile routes DC cabling cleanly through the cavity, and the full hot-dip galvanizing ensures 25+ year corrosion resistance matching the panel service life.

l  Building Purlins & Secondary Framing

C-channels are widely used as purlins (horizontal roof members supporting the roof cladding) and girts (horizontal wall members supporting wall cladding) in pre-engineered steel buildings, warehouses, and industrial sheds. Their open profile allows for simple overlap splicing at supports and easy attachment of roof and wall sheeting using self-drilling screws. Q235B channels are the standard choice for secondary framing where loads are moderate.

l  Stair Stringers & Industrial Walkways

Channels form the inclined side support members (stringers) of commercial and industrial staircases, as well as the main framing for mezzanine walkways, catwalks, and equipment access platforms. The flat back provides a clean mounting surface for stair treads welded or bolted between two facing channels, while the flange provides lateral stiffness to resist twisting under foot traffic loads.

05. Why Choose Us?

1. Full Size & Standard Range

From lightweight 5# to heavy 40# (GB/T 706), UPN 30 to UPN 400 (EN), and C3 to C15 (ASTM), we stock channels in Chinese, European, American, Japanese, and Indian standards — one supplier for your entire channel procurement.

2. Vehicle-Grade Certification

For truck chassis and trailer applications, we supply Q355B and A572-50 channels with supplementary Charpy impact testing and stricter chemical composition limits, meeting the fatigue and impact requirements of on-highway and off-highway vehicle manufacturers.

3. In-House Fabrication Services

We provide saw cutting to exact length (±2mm), CNC drilling of bolt holes, flame-cut copes and miters, welding of end plates and connection brackets, and full surface preparation — beams arrive at your site fabrication-ready.

4. Galvanizing Expertise

We manage the full hot-dip galvanizing process in-house or through qualified partner facilities, including pre-drilling of vent and drainage holes, controlled immersion for minimal thermal distortion, and supply of zinc-rich touch-up paint for site repairs.

5. Global Export Logistics

Export-standard bundling with steel strapping; container optimization for mixed-profile loading; Tianjin / Shanghai / Qingdao service; all documentation — including 2026 export license, MTC (EN 10204 3.1), and certificate of origin — handled in-house for 24-48 hour customs clearance.

06. Packaging & Logistics

l  Lead Time: 7-14 days for stock sizes and grades; 15-25 days for custom mill rolling.

Loading Port: Tianjin / Shanghai / Qingdao.

l  Payment Terms: 30% T/T deposit + 70% against BL copy; or 100% Irrevocable L/C at sight.

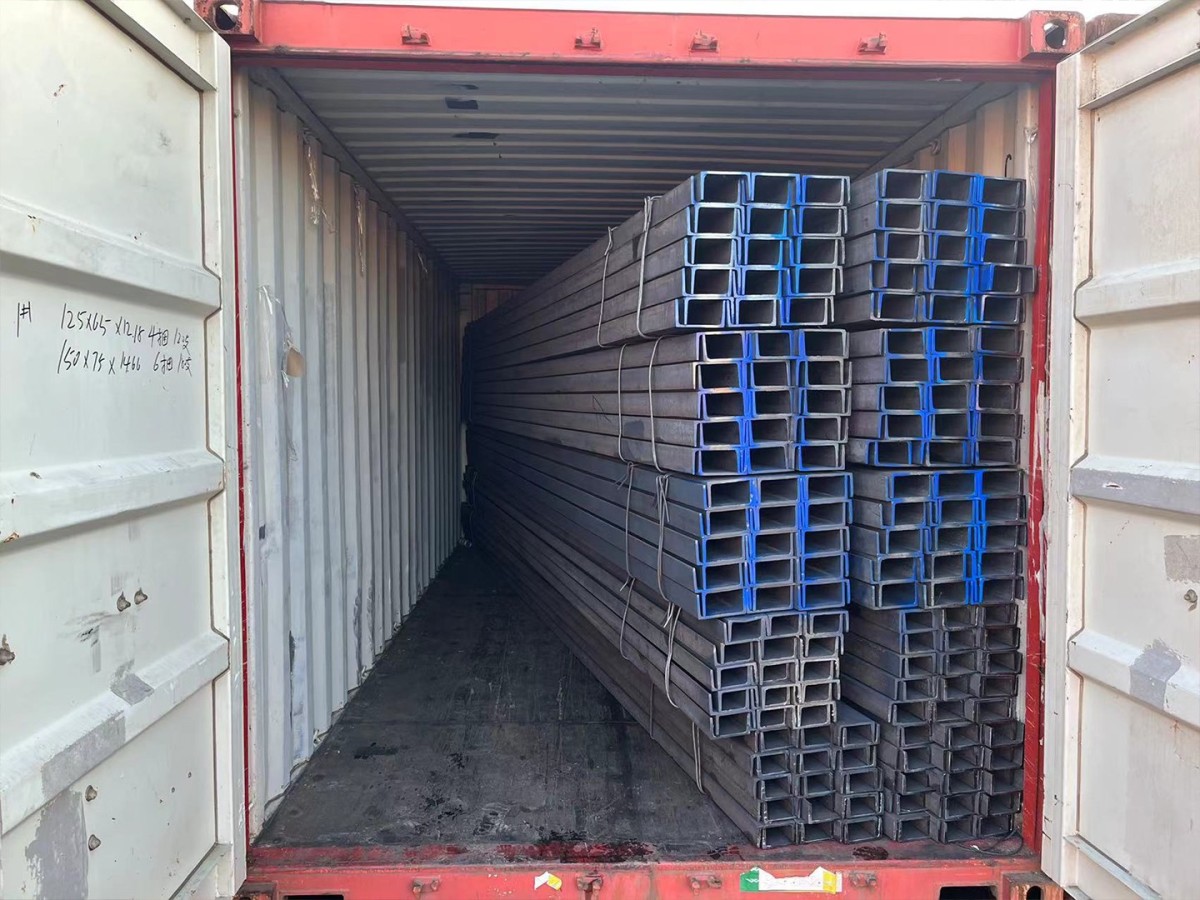

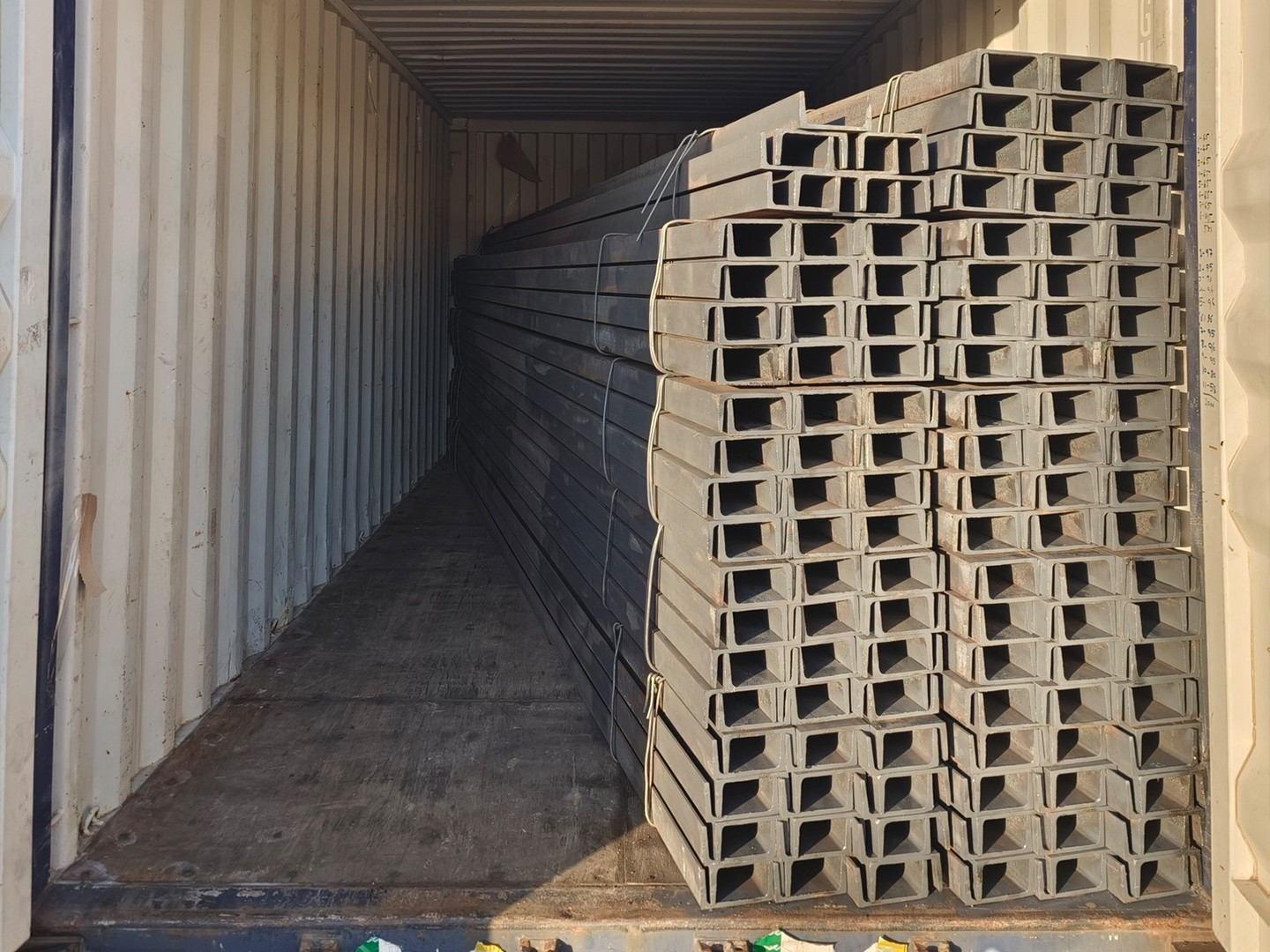

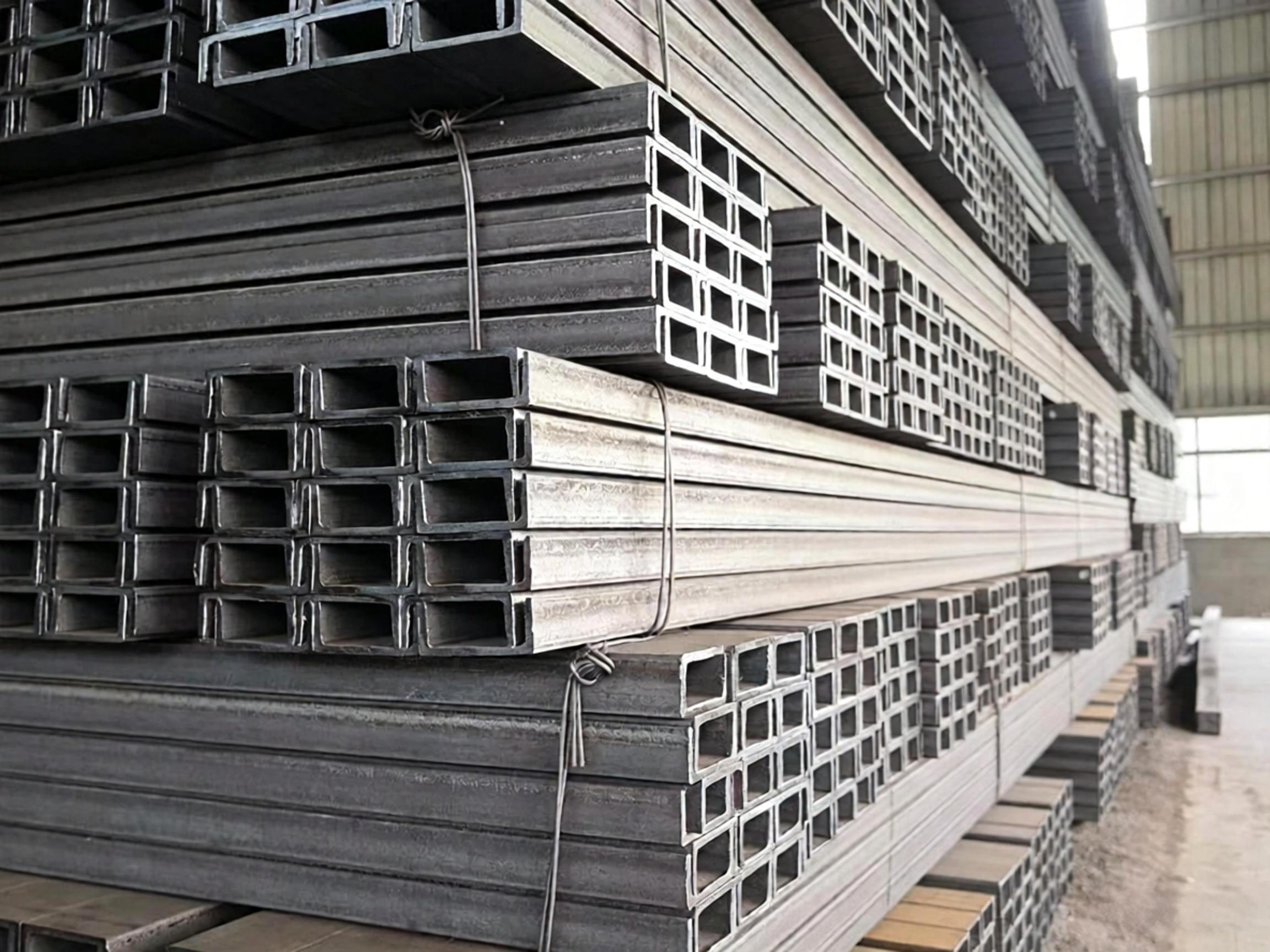

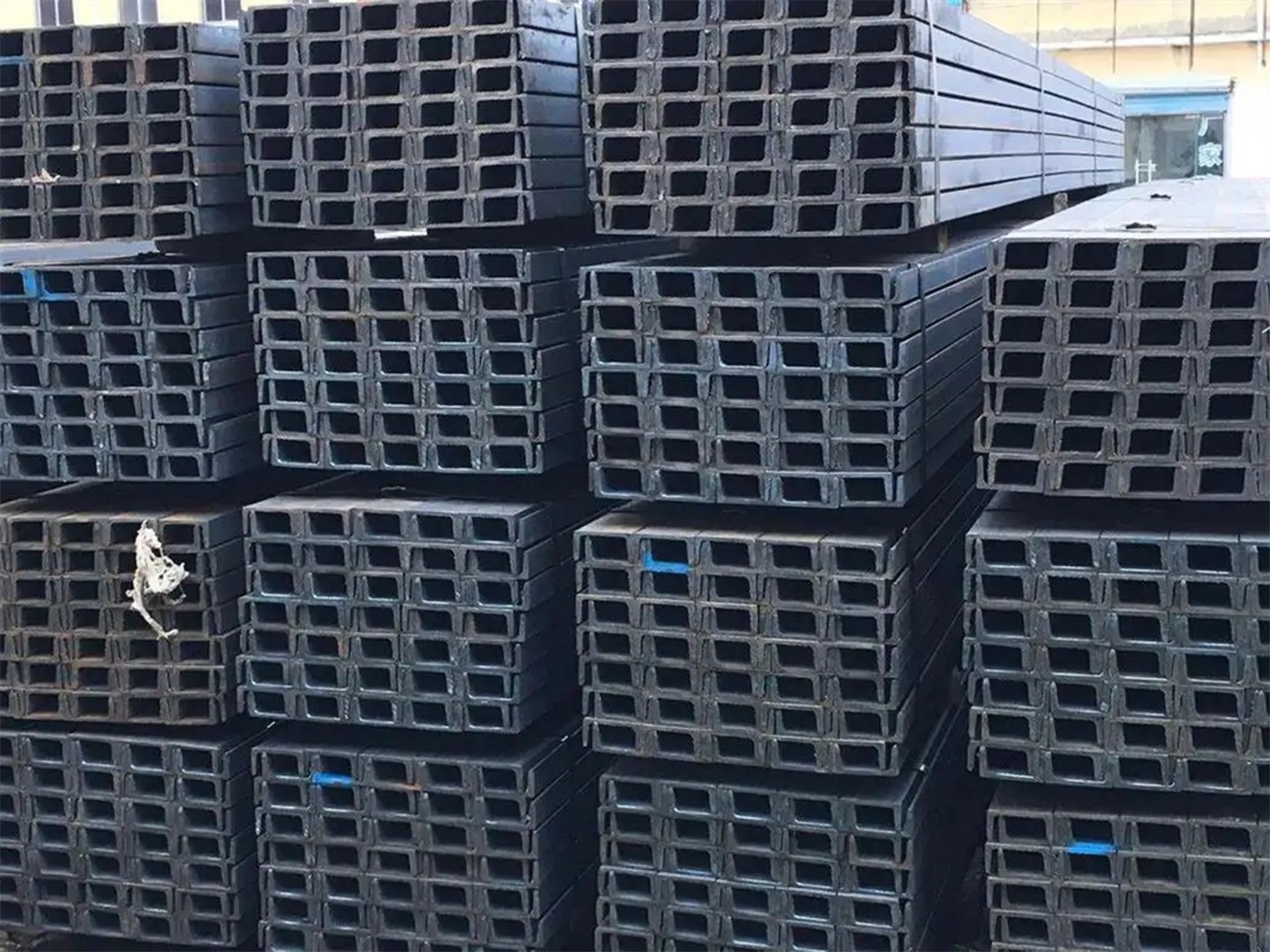

l  Packaging: Channels are bundled in max 5-ton lifts; nesting of smaller channels inside larger ones (when practical) to reduce freight volume; layers separated by timber dunnage; secured with flat steel strapping and metal edge guards. Galvanized Incoterms: EXW / FCA / FOB / CFR / CIF / DAP / DDP (negotiable).

l  Documentation: MTC (EN 10204 3.1) with full chemical composition and mechanical properties, packing list, commercial invoice, certificate of origin, and 2026-compliant export license where required.

07. FAQ

Q1: What is the difference between UPN and UPE channels?

UPN and UPE are two channel profile types defined by the European EN 10279 standard, distinguished by flange geometry:

Ø  UPN is the traditional profile, directly comparable to Chinese GB/T 706 and Japanese JIS channels.

Ø  UPE is a more recent development optimized for bolted connections and is increasingly specified for solar racking and modular steel structures.

Q2: What is the difference between a Chinese GB/T 706 channel and an American ASTM C-channel?

While both are hot-rolled C-sections, they differ in key dimensional definitions:

These differences mean that a GB/T 706 channel and an ASTM C-channel are not directly interchangeable without engineering verification. When your project is designed to one standard, always order to that standard unless the structural engineer confirms an acceptable equivalent.

Q3: What do the "a", "b", and "c" sub-types mean in Chinese GB/T 706 channels?

 Within a given nominal height (e.g., 20#), the sub-types indicate progressive increases in web and flange thickness:

For example, 20# standard masses are: 20a ≈ 22.6 kg/m, 20b ≈ 25.8 kg/m, 20c ≈ 29.1 kg/m. The progressive increase in section modulus allows engineers to upgrade load capacity without changing the external envelope dimensions — critical when interfacing with pre-designed connection plates and brackets.

Q4: Can two channels be welded back-to-back to create a stronger section?

Yes — this is a very common fabrication technique used to create what is essentially an I-beam or box column from two standard channels. Key engineering considerations:

Ø  Back-to-back (toes in):

The two channels are placed with their flange tips touching, creating a symmetrical I-shaped section. This approximately doubles the strong-axis bending capacity and provides balanced bi-directional stiffness — ideal for columns and beam-columns.

Ø  Toe-to-toe (open face out):

The flat backs are placed together, forming a rectangular box. This maximizes torsional stiffness and is preferred for members subject to twisting loads.

Ø  Connection:

The two channels must be adequately stitch-welded or intermittently bolted along their length to ensure composite action. Welding specification (length and spacing of stitch welds) should follow the governing structural code. We can supply pre-welded back-to-back channel assemblies per your drawings if you prefer to receive a ready-to-erect fabricated member.

Q5: Why are channels preferred over I-beams for vehicle chassis frames?

Vehicle chassis design favors channels for several practical reasons:

Ø  Flat back for component mounting:

Engine mounts, suspension brackets, crossmember connections, and body mounts all bolt directly to the flat outer web face — impossible with an I-beam's tapered narrow flange.

Ø  Open-side access for assembly and maintenance:

Brake lines, wiring harnesses, and air lines can be routed through the open channel cavity, and bolts can be inserted and tightened from the open side.

Ø  Torsional compliance:

Channels have lower torsional stiffness than closed box sections, allowing the chassis frame to flex slightly under uneven terrain — reducing stress concentrations at rigid connections.

Ø  Damage tolerance:

A localized dent or crack in one flange does not immediately compromise the entire section as it would in a hollow section. For heavy-duty off-road and mining vehicles requiring extreme torsional rigidity, rectangular hollow sections may be specified — but for the vast majority of on-highway trucks and trailers, the channel remains the industry standard.

Q6: Can channels be hot-dip galvanized? What should I watch for?

Yes, channels are particularly well-suited to hot-dip galvanizing — their open profile geometry eliminates the risk of trapped air pockets and incomplete internal coating coverage that can occur with hollow sections. Key processing requirements:

Ø  Vent and drainage holes:

We pre-drill holes at the web-flange junction and at end cut locations to prevent zinc pooling in the channel cavity and to ensure complete drainage after withdrawal from the zinc bath.

Ø  Thermal distortion:

For channels with web thickness <6mm, controlled immersion at approximately 1.5m/min withdrawal speed minimizes thermal bowing. Post-galvanizing straightening is applied if needed.

Ø  Threaded holes:

Any bolt holes that must remain threaded after galvanizing should be oversized prior to coating or tapped after galvanizing — we can advise on the correct pre-galvanizing hole diameter.

Ø  Field repair:

Every galvanized shipment includes zinc-rich aerosol touch-up paint for any transportation or erection damage. Hot-dip galvanized channels (≥55μm zinc per ISO 1461) are the standard specification for solar farms, coastal infrastructure, and outdoor structural applications where maintenance painting is impractical.

Q7: Can channel steel be used as a column?

Channels can serve as columns for light to moderate axial loads, but their inherent asymmetry imposes important design constraints:

Ø  Weak-axis buckling:

The channel's center of gravity and shear center do not coincide, meaning it tends to twist as it buckles (flexural-torsional buckling). The buckling load is governed by the weak axis unless adequate bracing is provided.

Ø  Single channel column:

Suitable for lightly loaded posts, rack uprights, and secondary columns where the axial load is modest and the member is braced at close intervals.

Ø  Back-to-back channel column:

Two channels welded or bolted back-to-back form a doubly symmetric section, significantly increasing both strong-axis and weak-axis buckling resistance. This is the standard solution for heavier column loads using channel sections. For primary building columns carrying significant axial plus bending loads, we recommend H-beams (HW-series) or square hollow sections, which provide balanced bi-directional stiffness without the buckling asymmetry inherent to single channels.

Q8: Are channels suitable for solar panel racking structures?

Yes, hot-dip galvanized channels — particularly UPE (parallel flange) types — are one of the most widely used structural profiles in utility-scale and commercial rooftop solar installations. Their suitability stems from:

Ø  Flat back for rapid mounting:

Channels bolt directly to ground screws, concrete ballast blocks, or roof mounting brackets without shimming.

Ø  Open cavity for cable management:

DC string cables from multiple panel rows are routed cleanly through the channel cavity, avoiding external cable trays.

Ø  Standardized clamping:

Solar panel mid-clamps and end-clamps are designed to grip the channel flange — UPE parallel flanges provide consistent clamping pressure across the flange width.

Ø  Certified corrosion protection:

Hot-dip galvanizing to ISO 1461 (minimum 55μm zinc) ensures the support structure matches the 25-30 year design life of the panels without repainting. We stock Q235B and Q355B channels with full hot-dip galvanizing specifically for solar racking applications. Custom punching and drilling of clamp mounting holes per your racking system design is available.

Q9: What is the difference between using a channel and using an angle for structural framing?

Channels and angles serve overlapping but distinct roles in structural steel:

Quick Rule: If the member is a beam carrying bending load → Channel. If it's a brace, tie, or connection element in a truss → Angle. Channels and angles are often used together — channels as the primary beams/purlins and angles as the diagonal bracing connecting them.

Q10: What is the MOQ for channel steel? Can I mix sizes and standards in one container?

Standard stock sizes

(GB/T 706 5#-20#, Q235B; ASTM C3-C10, A36), Available from warehouse inventory; MOQ flexible, starting from 28 tons.

Heavy sizes

(GB/T 706 20#-40#; ASTM C12-C15) and Q355B/A572-50/S355J2 grades, Custom mill rolling with MOQ approximately 25-50 tons per size due to dedicated roll tooling.

Mixed loading

We routinely combine channels of different sizes and standards in single containers, and can also mix channels with I-beams, H-beams, angles, and flat bars for consolidated shipments. Smaller channels can be nested inside larger ones to reduce freight volume. Send us your complete BOM (specifying size, standard, grade, length, and surface treatment for each item) and we will prepare an optimized mixed-loading plan and freight quotation within 24 hours.

For inquiries, grade recommendations, or a detailed quotation, please contact our structural steel team.
