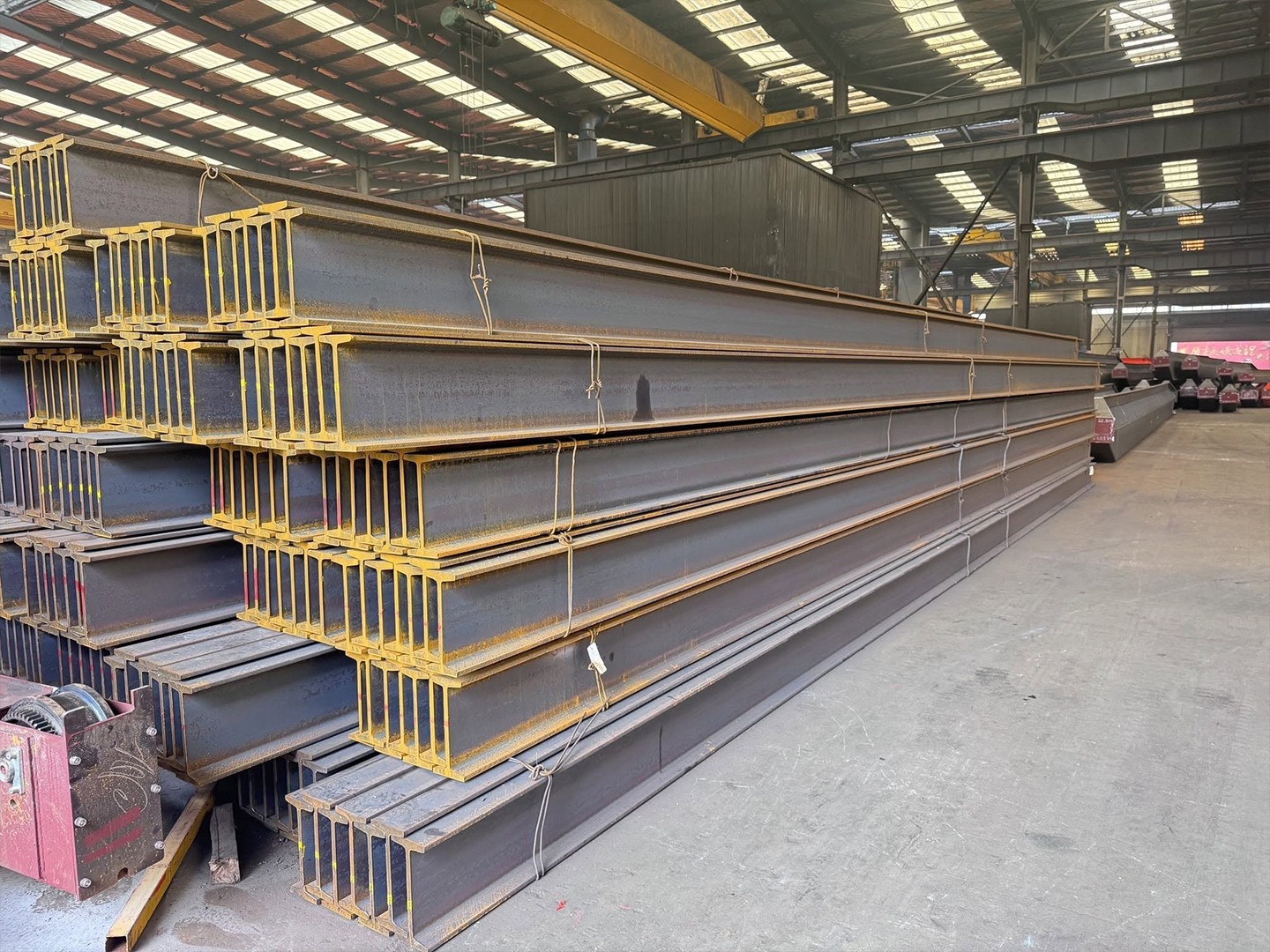

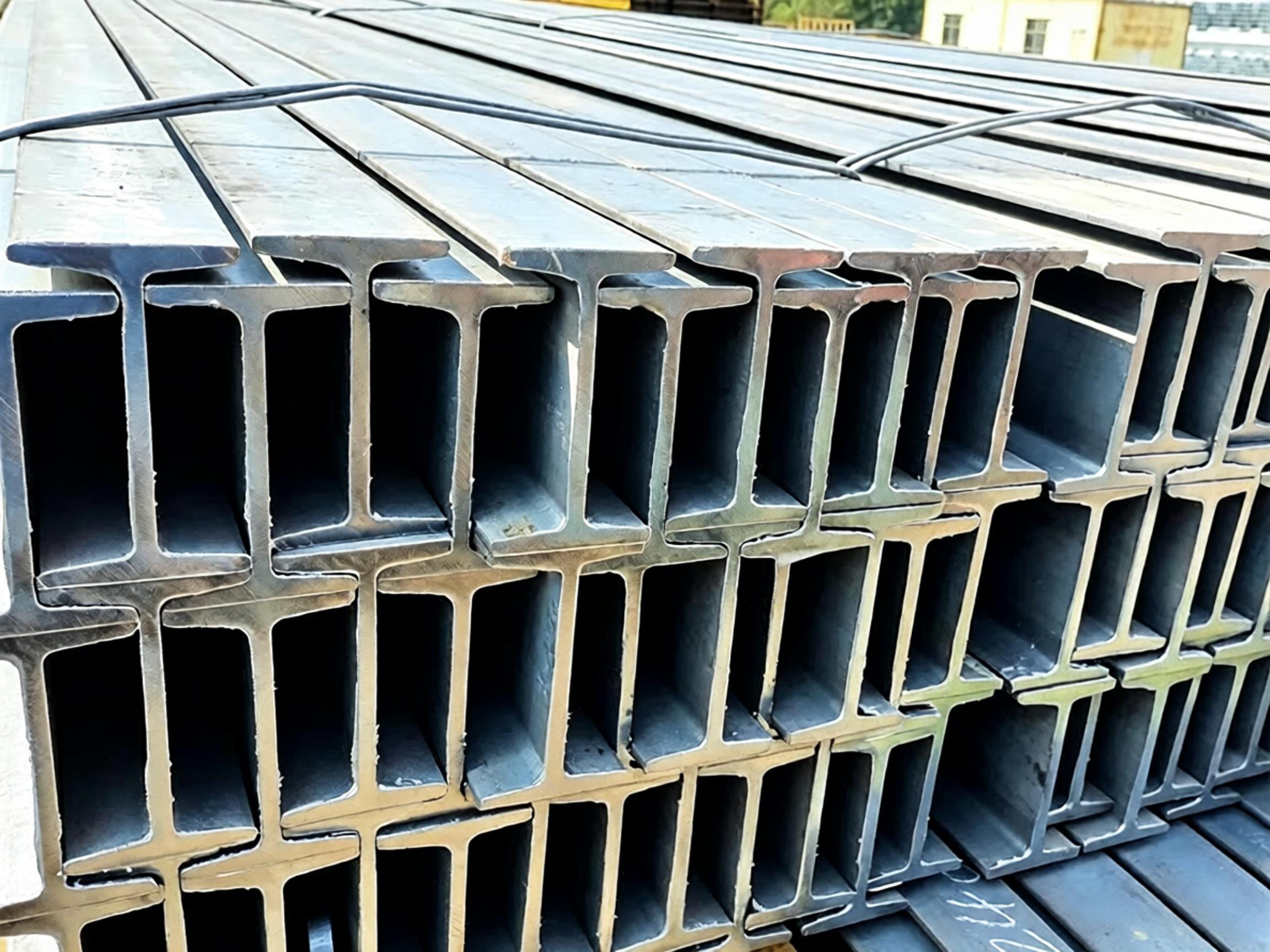

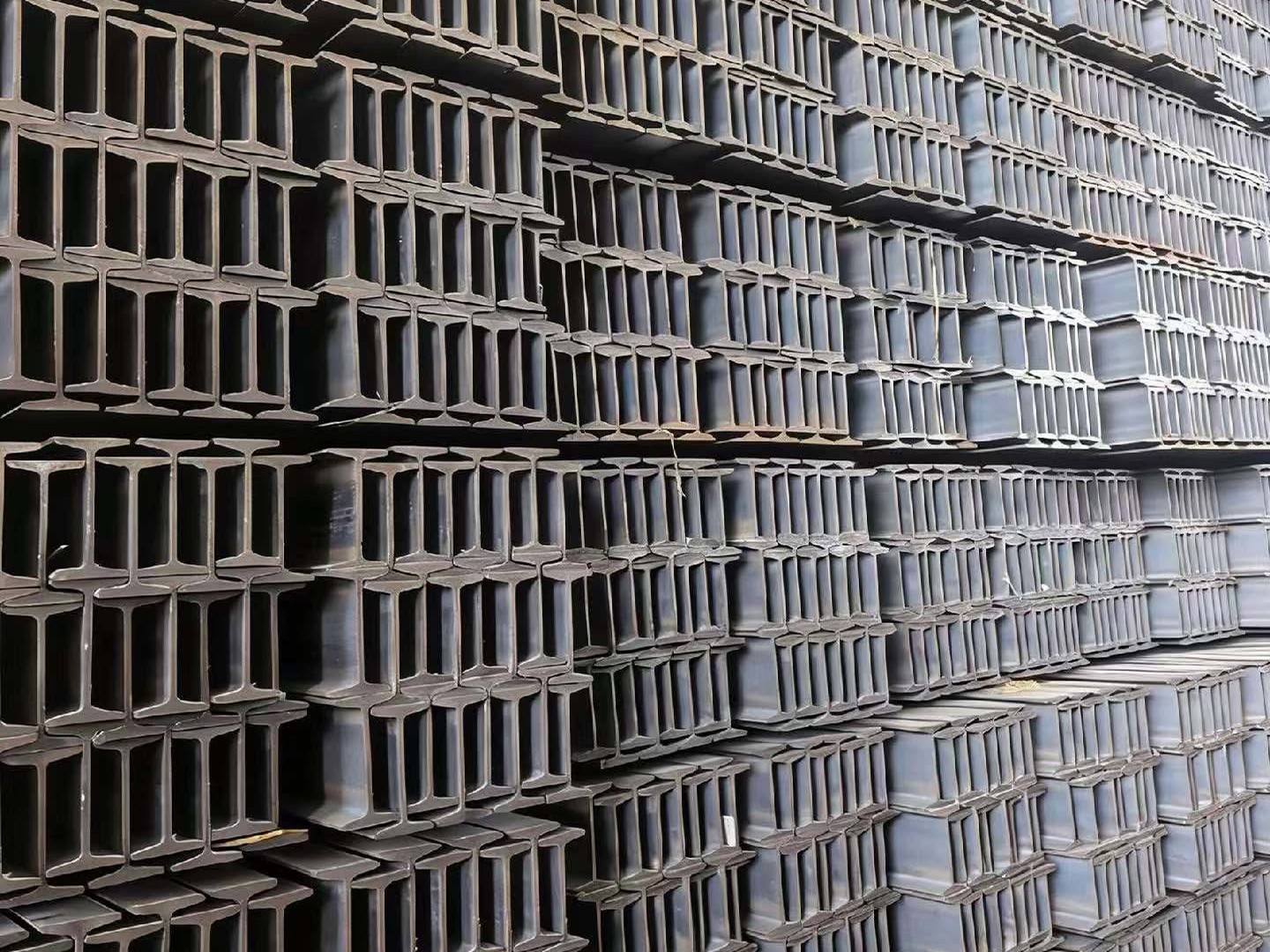

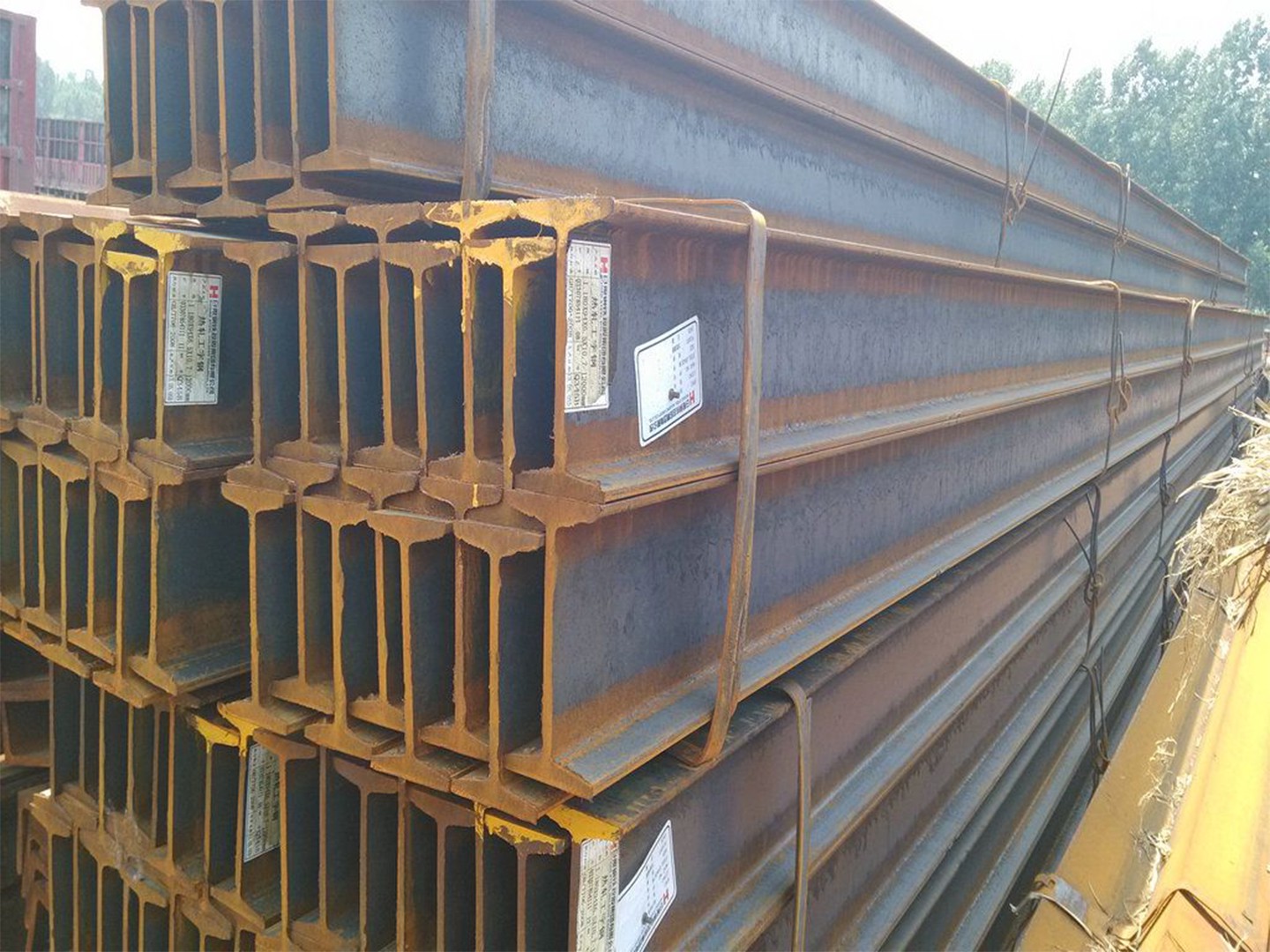

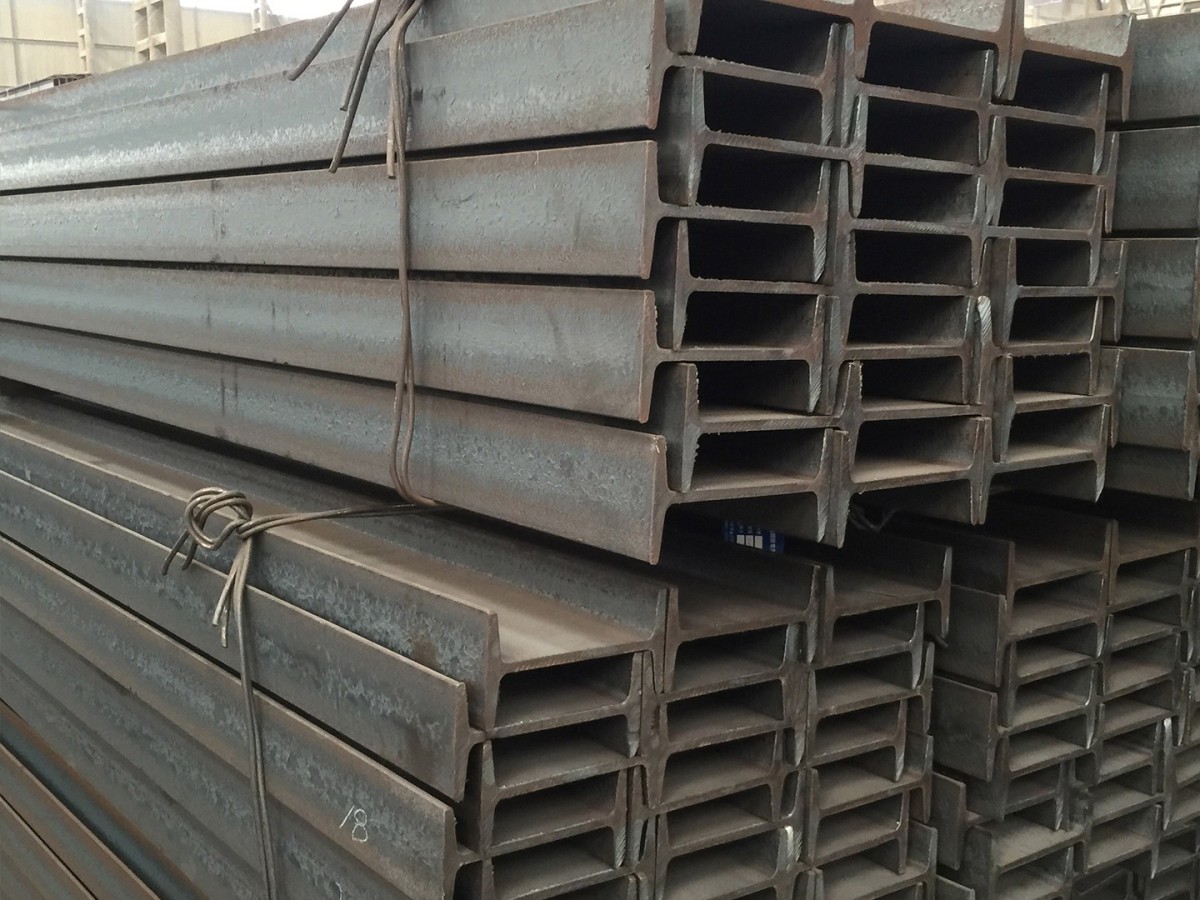

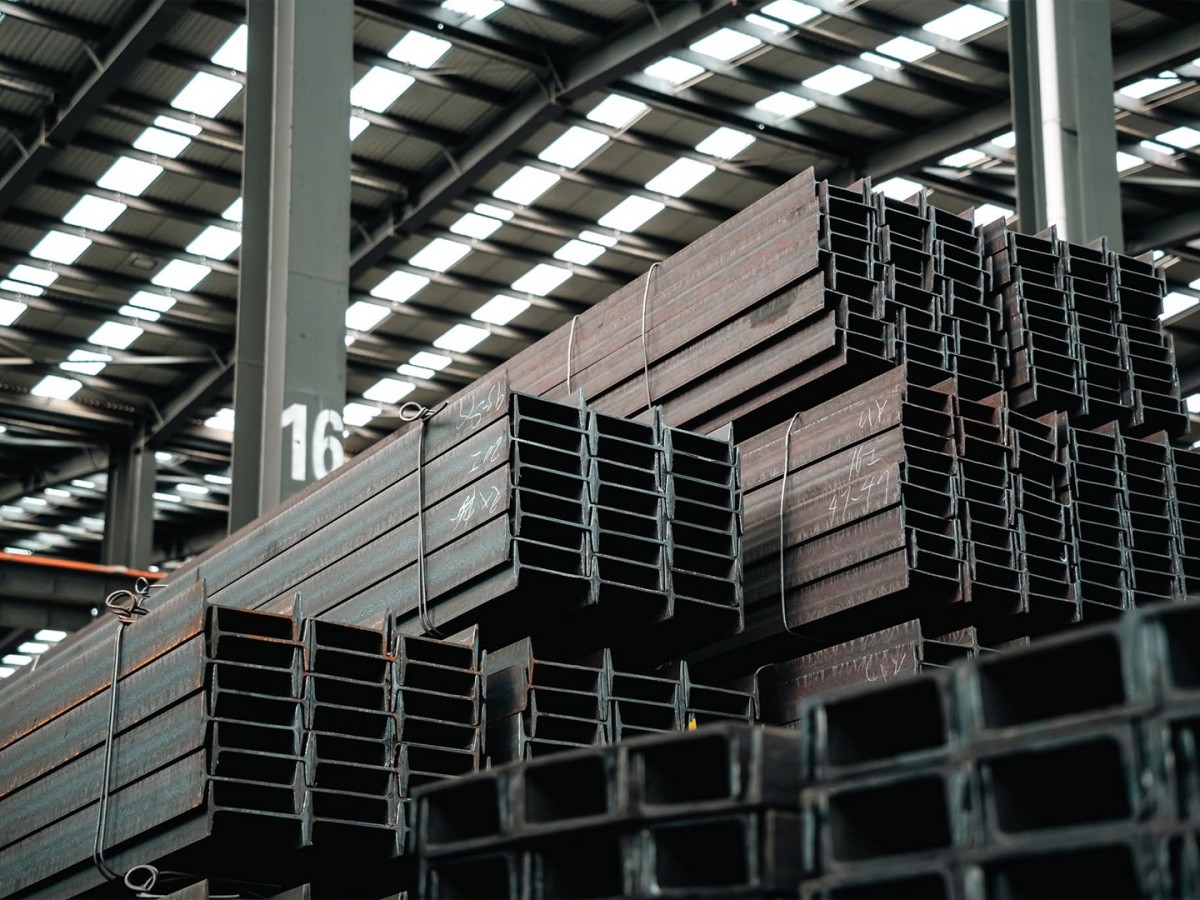

Hot Rolled Steel I-Beam (Universal I-Section)

Hot Rolled Steel I-Beam | ASTM A36 / A992 / Q235B / S235JR | GB/T 706, ASTM A6, EN 10024, JIS G3192 Standard I-Sections for Crane Rails, Bridges & Floor Joists - [SONGCHENSTEEL]

01. Product Overview

Our Hot Rolled Steel I-Beam is a versatile structural profile defined by its distinctive I-shaped cross-section — a tall vertical web connecting two narrower, symmetrical flanges. This time-tested geometry concentrates material mass where structural demands are highest: the web resists vertical shear, while the flanges carry bending moment. The result is a profile that delivers exceptional vertical load-bearing efficiency per kilogram of steel at a highly competitive cost.

The term "I-beam" is an umbrella designation covering multiple national and regional standards, each with its own dimensional series — including the Chinese GB/T 706 I-beam (designated by "#"), the American ASTM A6 S-shape, the European EN 10024 IPE/IPN series, and the Japanese JIS G3192 I-section. While all share the fundamental I-shape with a relatively narrow flange and high web, specific flange slopes, corner radii, and dimensional ratios vary by standard. We supply I-beams to all of these specifications, ensuring full compatibility with your project's design code — whether it follows GB, ASTM, Eurocode, JIS, or IS standards.

Spanning web heights from 100mm (10# / IPE 100) to 630mm (63# / IPE 600), grades from Q235B general structural steel to A992 and Q355B high-strength low-alloy steel, our I-beams serve as the backbone of crane runways, monorail hoist tracks, floor joists, bridge stringers, and industrial mezzanine structures worldwide.

02. Key Features & Advantages

l  Optimized for Vertical Shear

Ø  Feature: Tall, narrow web cross-section that concentrates structural mass along the vertical centerline, with flange width typically 25-35% of Web height.

Ø  Advantage: Delivers the highest vertical shear resistance and flexural stiffness per kilogram of steel among all open-web hot-rolled sections.

Ø  Benefit: "Maximum Load, Minimum Steel." Engineers achieve longer clear spans with shallower deflections while reducing overall beam weight compared to rectangular hollow sections or channel sections of equivalent vertical load capacity.

l  Multi-Standard Compatibility

Ø  Feature: Available in Chinese GB/T 706, American ASTM A6 (S-shape), European EN 10024 (IPE/IPN), Japanese JIS G3192, and Indian IS 808 dimensional standards.

Ø  Advantage: Seamlessly integrates with your existing structural design — whether it references metric Chinese "#" designations, American S-shapes, or European IPE profiles.

Ø  Benefit: "One Supplier, All Codes." Eliminates the need to source I-beams from multiple mills across different countries — we deliver the exact standard your structural drawings specify.

l  Proven Century-Long Track Record

Ø  Feature: I-beam geometry has been codified in structural steel standards for over 100 years and is recognized by every major national building code.

Ø  Advantage: Pre-calculated load tables, standard connection details, and extensive historical performance data are publicly available — accelerating design and permitting.

Ø  Benefit: "Design Certainty." Structural engineers face zero learning curve: every code-acceptable loading scenario has been validated through decades of real-world service on millions of structures worldwide.

l  Predictable Fabrication & Erection

Ø  Feature: Well-characterized carbon equivalent (CE ≤0.45% for Q355B/A992 grades) with standardized flange and web thicknesses governing welding parameters.

Ø  Advantage: Enables straightforward connection design using standard shear tabs, angle cleats, and bolted end plates — and compatible preheat schedules for field welding across all common processes (SMAW, FCAW, SAW).

Ø  Benefit: "Reduced Site Labor." Fabricators and erectors can work from standard shop drawings and welding procedures without developing custom connection prototypes.

03. Technical Specifications

04. Versatile Applications

l  Overhead Cranes & Monorail Hoists

I-beams are the industry-standard support profile for overhead crane runways and monorail hoist systems in steel mills, manufacturing bays, and logistics warehouses. The lower flange serves directly as the running surface for crane end-truck wheels and hoist trolleys. In GB/T 706 standard, sizes 25# to 45# are most commonly specified for crane capacities from 5 to 50 tons; in ASTM A6, S12 to S20 beams serve equivalent roles.

l  Commercial Building Floor Joists

I-beams serve as primary floor and roof joists in steel-framed commercial buildings, shopping malls, and multi-story parking structures. Their deep web provides the vertical stiffness needed to control floor vibration and live-load deflection, while their compact flange width allows them to be concealed within standard partition wall cavities and suspended ceiling plenums.

l  Bridge Stringers & Approach Spans

I-beams are widely specified as longitudinal stringers and transverse floor beams in steel and composite bridges, particularly for short to medium spans (up to 30m) where their high strength-to-weight ratio reduces superstructure dead load. A572-50 (ASTM A709 Grade 50 equivalent) and Q355D grades with guaranteed -20°C Charpy impact toughness are specified for cold-region highway bridges requiring fracture-critical member certification.

l  Mining Equipment & Heavy Industrial Platforms

Heavy I-beams (36# to 63# under GB/T 706, or S18 to S24 under ASTM A6) form the structural framework of underground mine roof supports, vibrating screen support platforms in coal preparation plants, and heavy equipment maintenance decks. Their proven fatigue performance under the cyclic loading produced by crushers, screens, and conveyor systems makes them a reliable choice for 24/7 industrial operations.

05. Why Choose Us?

1. Full Size & Standard Coverage

From lightweight 10# (GB/T 706) / IPE 100 (EN) to heavy 63# / IPE 600, we stock I-beams across Chinese, American, European, Japanese, and Indian standards — one supplier for all your project's I-beam requirements.

2. Multi-Standard Expertise

Our team can cross-reference I-beam dimensions across GB, ASTM, EN, JIS, and IS standards, helping you find the nearest equivalent when substituting between codes to optimize cost or lead time.

3. Crane-Grade Inspection

I-beams destined for crane runways undergo enhanced straightness inspection: camber and sweep limited to ≤1mm per meter, ≤8mm over full length — stricter than the standard ASTM A6 L/1000 requirement — ensuring smooth trolley travel with minimal wheel wear.

4. Pre-Delivery Processing

In-house saw cutting to exact length (±2mm), CNC drilling of rail splice bolt holes, flame-cut copes and notches, and surface preparation (shot blasting to Sa 2.5 + anti-rust shop primer) — beams arrive at your site ready for immediate erection.

5. Global Export Logistics

Export-standard seaworthy bundling with edge guards; 6m and 12m loading from Tianjin / Shanghai / Qingdao ports; all documentation — including the 2026 steel export license, MTC (EN 10204 3.1), and certificate of origin — handled in-house for customs clearance within 24-48 hours.

06. Packaging & Logistics

l  Lead Time: 7-14 days for stock sizes and grades; 15-25 days for custom mill rolling. Loading Port: Tianjin / Shanghai / Qingdao.

l  Payment Terms: 30% T/T deposit + 70% against BL copy; or 100% Irrevocable L/C at sight.

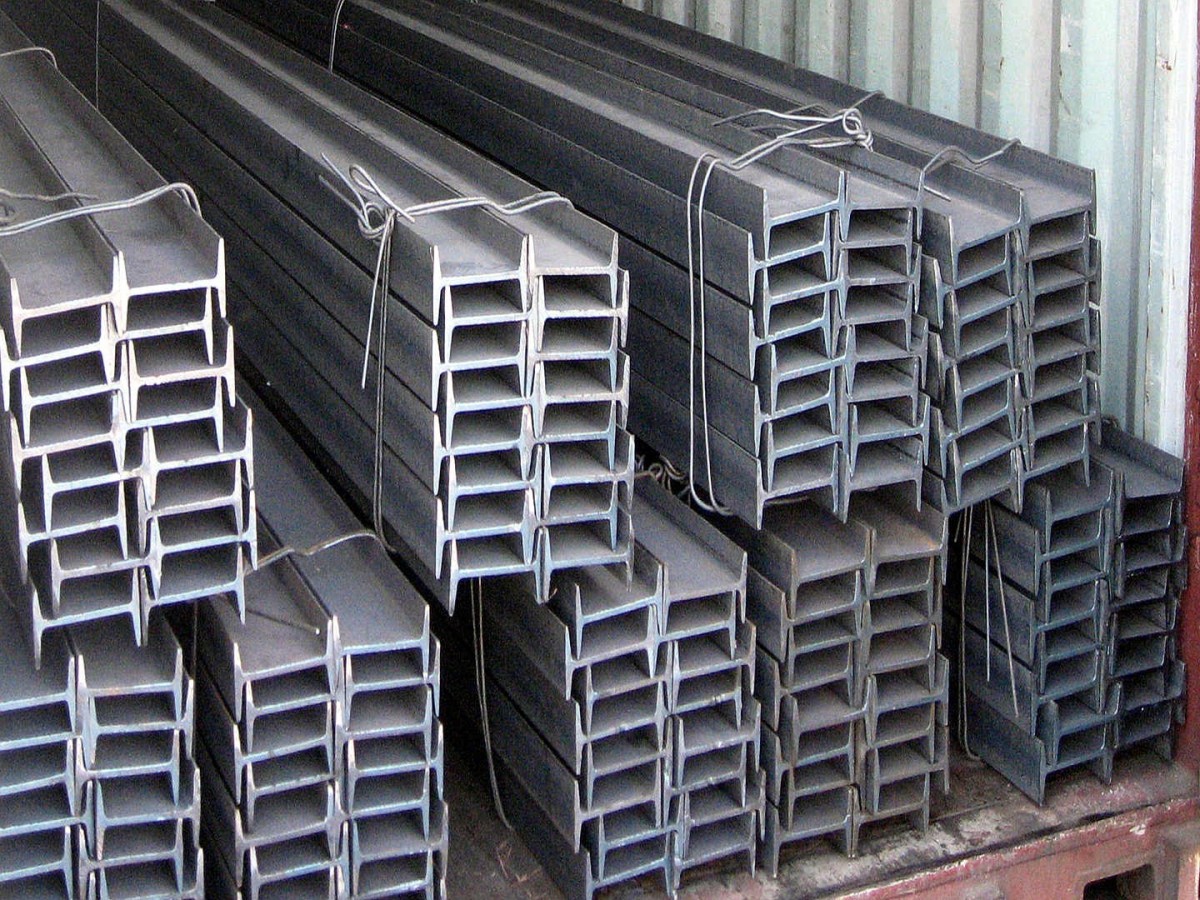

l  Packaging: I-beams are bundled in max 5-ton lifts with layers separated by timber dunnage to protect flange edges; secured with flat steel strapping and metal edge guards. Crane-runway beams are individually wrapped to protect the lower flange running surface. Hot-dip galvanized beams receive additional waterproof wrapping and desiccant packs.

l  Incoterms: EXW / FCA / FOB / CFR / CIF / DAP / DDP (negotiable).

l  Documentation: MTC (EN 10204 3.1) with full chemical composition and mechanical properties, packing list, commercial invoice, certificate of origin, and 2026-compliant export license where required.

07. FAQ

Q1: Is "I-beam" the same thing as "S-beam"?

No — this is a common confusion in international steel procurement. "I-beam" (工字钢) is the broad, generic term for any hot-rolled structural section with an I-shaped cross-section. "S-beam" (or "S-shape") is one specific sub-type of I-beam defined by the American ASTM A6 standard, characterized by a 1:10 (approximately 8%) internal flange slope and designated as S3, S4, S6, S8, S10, S12, S15, S18, S20, and S24.

Other sub-types of I-beams under different national standards include:

Ø  GB/T 706 (China): Designated by "#" (e.g., 25#), with a 1:6 flange slope and "a / b / c" sub-types.

Ø  EN 10024 (Europe): IPE (parallel flange) and IPN (tapered flange, ~14% slope) series.

Ø  JIS G3192 (Japan): Japanese I-beams with a 1:10 flange slope.

Ø  IS 808 (India): Indian Standard I-beams (ISJB, ISLB, ISMB, ISWB, ISHB series).

When ordering, always specify both the standard AND the designation — "GB/T 706 I-beam 25b" is dimensionally different from "ASTM A6 S10".

Q2: What is the difference between a Chinese I-beam (GB/T 706) and an American S-beam (ASTM A6)?

While both are I-shaped, they differ in key dimensional parameters:

These dimensional differences mean that a GB/T 706 I-beam and an ASTM A6 S-beam — even with the same nominal depth — may have different flange widths, web thicknesses, and section properties. They are not directly interchangeable without engineering verification. If your project is designed to one standard, do not substitute with the other unless the structural engineer has confirmed equivalency.

Q3: What is the difference between an I-beam and an H-beam (Wide Flange beam)?

The fundamental distinction lies in geometry and structural role:

Quick Rule: If the load is primarily vertical and unidirectional → I-beam. If the member must resist bending in two directions OR serve as a compression column → H-beam.

Q4: What do the "a", "b", and "c" sub-types mean in Chinese GB/T 706 I-beams?

Within a given nominal height (e.g., 32#), the sub-types indicate progressive increases in flange and web thickness within the same external height envelope:

Ø  a (light): Thinnest web and flange — lowest weight per meter, lowest cost. Suitable for lightly loaded floor joists and secondary framing.

Ø  b (medium): Intermediate thickness — most commonly stocked and specified for general structural use.

Ø  c (heavy): Thickest web and flange — highest section modulus and shear capacity per meter. Used for heavy crane runways, primary bridge girders, and high-load industrial platforms.

For example, 32# standard masses are: 32a ≈ 52.7 kg/m, 32b ≈ 57.7 kg/m, 32c ≈ 62.8 kg/m — an approximately 9-10% weight increase per step, with corresponding gains in load capacity. When your structural analysis shows a given size is close to its capacity limit, upgrading from "a" to "b" or "b" to "c" is often more cost-effective than moving to the next larger height designation.

Q5: Why do some I-beams have tapered flanges and others have parallel flanges?

Flange geometry varies by national standard and manufacturing era:

Ø  Tapered flanges (1:6 to 1:10 slope):

Found in Chinese GB/T 706, American ASTM A6 S-shapes, Japanese JIS G3192 I-beams, and European IPN beams. The taper evolved from early hot-rolling technology as it facilitates clean ejection from the mill rolls. The sloped surface also provides self-centering for crane wheels on the lower flange.

Ø  Parallel flanges:

Found in European IPE beams, which were developed later with more advanced universal rolling mills capable of maintaining parallel surfaces. Parallel flanges simplify bolted connections (no tapered washers needed) and offer marginally better section efficiency. We supply both types — tapered per GB/ASTM/JIS, and parallel per EN (IPE). The choice typically follows whichever standard governs your project's structural design.

Q6: Can I-beams be used as columns?

While structurally possible in very light-load scenarios, I-beams are generally not recommended for column applications due to:

Ø  Low buckling resistance about the weak axis:

The narrow flange width provides minimal radius of gyration in the transverse direction, significantly reducing the column's Euler buckling load.

Ø  Poor bi-directional moment capacity:

In building frames, columns must typically resist bending moments from beams framing in two perpendicular directions — I-beams are inherently weak in the transverse direction.

Ø  Connection geometry:

Bolting beam-to-column connections to the narrow, often tapered, inner flange face is more complex and less efficient than connecting to a wide-flange H-beam.

For column applications, we recommend HW-series H-beams (where flange width equals web height, providing balanced bi-directional stiffness), or square/rectangular hollow sections. If an I-beam column is unavoidable due to existing design constraints, always verify the weak-axis buckling capacity per the governing code and provide lateral bracing at intermediate points if necessary.

Q7: How do you ensure straightness for crane-runway I-beams?

Crane-runway I-beams demand tighter straightness tolerances than structural framing beams to prevent end-truck binding and uneven wheel wear. Our enhanced QC protocol includes:

Ø  Post-rolling multi-roll straightening:

Every beam passes through a straightening machine to correct both camber (vertical bow) and sweep (horizontal bow).

Ø  Crane-grade inspection:

Camber and sweep measured against a precision straightedge: ≤1mm per meter, ≤8mm over the full beam length — approximately 30% tighter than the standard L/1000 requirement.

Ø  Flange slope verification:

The internal flange slope angle is checked with a digital protractor at multiple positions along the beam to ensure it falls within the standard-specified tolerance (±1°). A dimensional inspection report is provided with every crane-runway order for your quality records.

Q8: Can you galvanize I-beams for outdoor or coastal applications?

Yes, we offer hot-dip galvanizing per ISO 1461 / ASTM A123, producing a 55-85μm zinc-iron alloy coating that encapsulates every surface of the beam — including the often hard-to-access inner flange surfaces at the web junction. Key processing considerations:

Ø  Pre-galvanizing vent holes:

We pre-drill vent and drainage holes at the web-flange junction to prevent trapped zinc from causing dimensional issues and to ensure complete drainage during the galvanizing process.

Ø  Thermal distortion management:

For beams with web thickness <8mm, we apply controlled immersion and withdrawal speeds guided by the specific beam geometry to minimize thermal bowing.

Ø  On-Site touch-up supply:

Each shipment includes zinc-rich aerosol paint (ZINGA or equivalent) for field touch-up of any coating damage sustained during transport or erection. Galvanized I-beams are the standard specification for seaside crane runways, outdoor pedestrian bridges, and marine infrastructure where maintenance painting access is restricted or cost-prohibitive.

Q9: What surface treatments are available for I-beams?

We offer three standard treatment levels plus custom systems for specialized environments:

Ø  Mill Finish (Black):

As-rolled with a thin protective mill scale. Lowest cost — appropriate for internal structural members, beams to be encased in concrete, or beams that will undergo on-site blast cleaning and painting after erection.

Ø  Shot Blasted + Shop Primer (Sa 2.5):

Abrasive blast-cleaned to near-white metal (ISO 8501-1 Sa 2.5); immediately coated with a weldable zinc-rich epoxy or iron oxide shop primer. Provides a 6-12 month clean, corrosion-protected base for subsequent site-applied finish coats.

Ø  Hot-Dip Galvanized (ISO 1461):

Full immersion in molten zinc at 450°C produces a metallurgically bonded 55-85μm coating offering decades of maintenance-free atmospheric corrosion protection.

Ø  Custom Systems(premium orders):

Multi-coat offshore paint systems (zinc epoxy primer + high-build epoxy intermediate + polyurethane topcoat) per ISO 12944; intumescent fireproofing coatings; or duplex systems (galvanized + painted) for extreme coastal/industrial environments.

Q10: What is the MOQ for I-beams? Can I mix different standards in one container?

Ø  Standard stock sizes

(GB/T 706 10#-40#, Q235B; ASTM A6 S3-S15, A36): Available from warehouse inventory;

Ø  MOQ flexible

starting from 28 tons. Small trial orders are welcome.

Ø  Heavy sections

(GB/T 706 40#-63#; ASTM A6 S18-S24) and Q355B/A992/A572-50 grades: Custom mill rolling required. MOQ approximately 200 tons per size due to dedicated roll tooling setup.

Ø  Mixed-standard container loading

We routinely combine I-beams from different standards (e.g., GB/T 706 + ASTM A6 + EN 10024) in single containers, along with channels, angles, and flat bars, for small to medium buyers. Our logistics engineers optimize the stowage plan to maximize weight utilization per container without risking profile damage. Send us your full BOM (bill of materials) with required standards, sizes, and grades — we will prepare a mixed-loading proposal and freight quotation within 24 hours.

For inquiries, grade recommendations, or a detailed quotation, please contact our structural steel team.
