PRODUCT DESCRIPTION

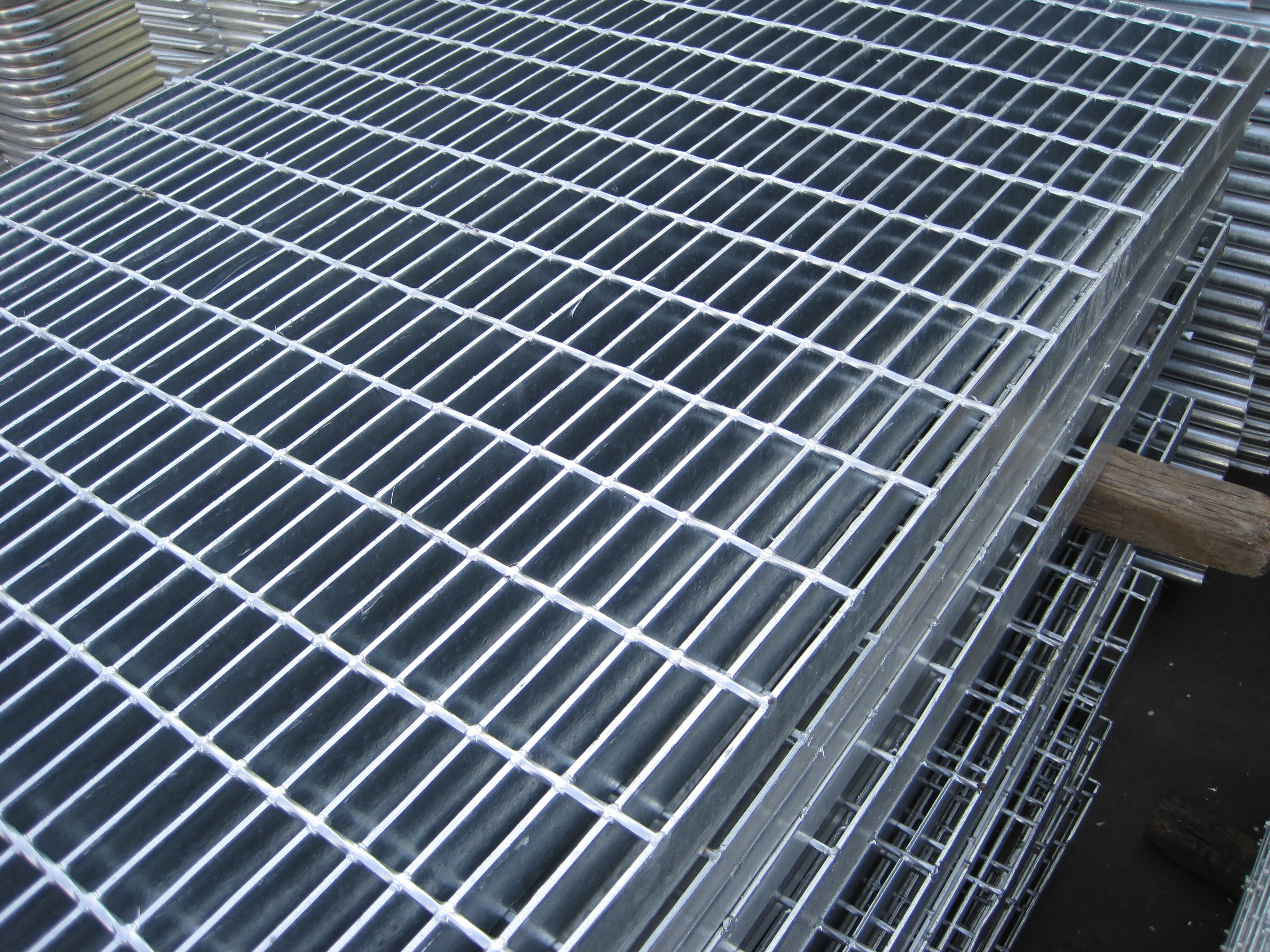

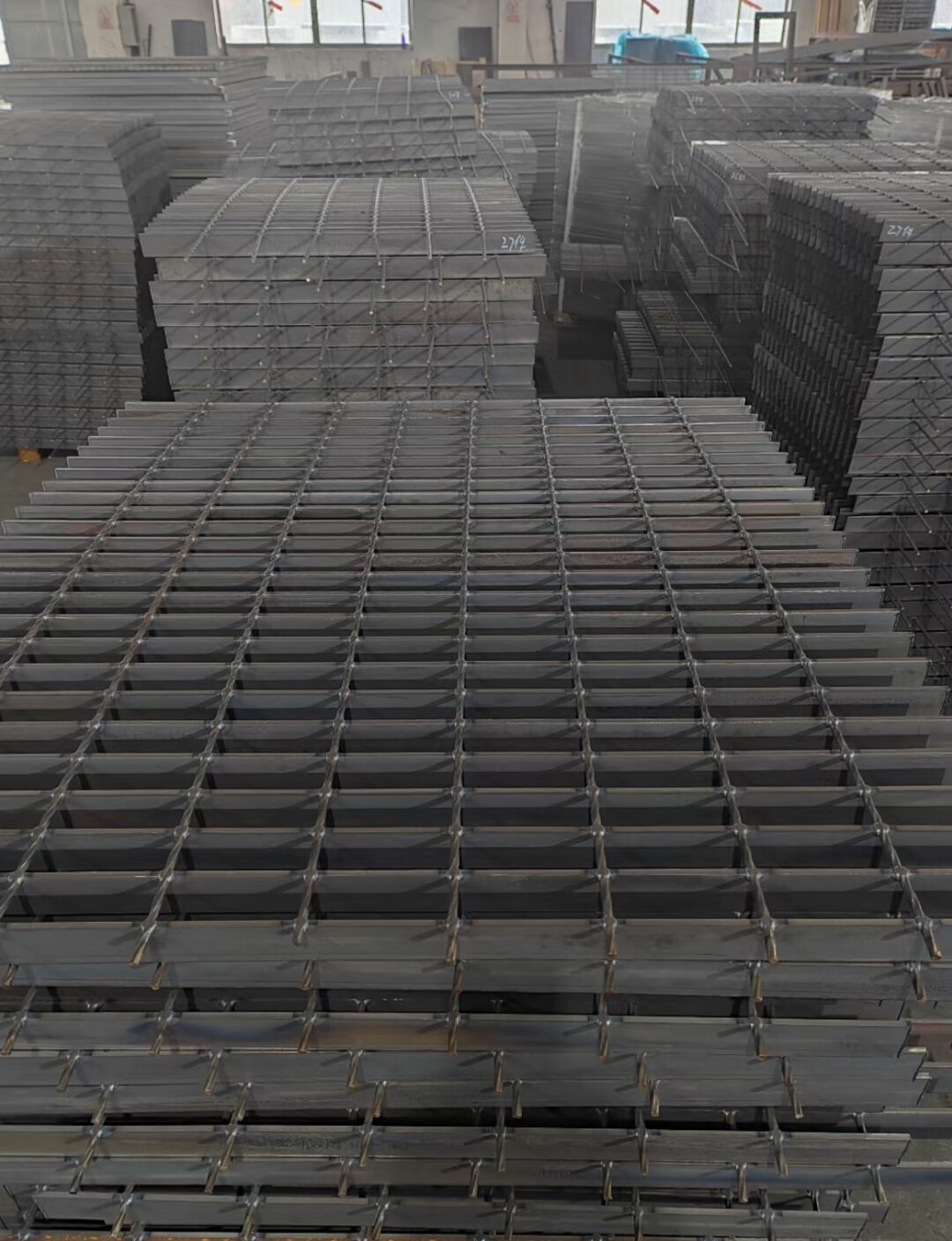

Galvanized grating, also called galvanized steel grating or galvanized steel bar grating, refers to the steel bar grating made of mild carbon steel through hot dipped galvanized surface treatment.

Mild carbon steel provides an economical, high strength for uses in most industrial and commercial applications. And hot dipped galvanized surface treatment supplies excellent corrosion

resistance performance for durability.

Steel grating is available in various material, such as stainless steel, aluminum, and galvanized steel. Among them, the galvanized steel grating is the most cost effective and economical type

with long service life and high load. And it is the most widely used in both industrial, commercial and residential applications.



Product LineBar Grating
Construction TypeStandard-Duty Welded
Bearing Bar ShapeRectangular Bar
Series Type & NameGW-150-A (19-W-4)
Product Spacing19-W-4
Primary MaterialGalvanized Steel (GV)
Alloy, Grade or TypeHot Dipped (HD)
Material FinishMill Finish
Bearing Bar Size & Shape1-1/2" Height x 1/8" Thick Rectangular Bar
Bearing Bar Height1-1/2"
Bearing Bar Thickness1/8"
Bearing Bar Spacing1-3/16" on Center


Clear Space Between Bearing Bars1-1/16"
Bearing Bars Per Foot of Width10.1053
Product SurfaceSmooth
Bearing Bar Direction (Span)Parallel to Length of Panel
Cross Bar Size & Shape1/4" Square Twisted Rod
Cross Bar Spacing4" on Center
Percent Open Area83%
Weight7.40 Lbs./Square Foot
Product FormPanel
CAD DrawingsPDF - Download NowDWG - Please Log In
Sizes (Width x Length)36" x 240"; 36" x 288" (Cut Sizes Available)
Load TableView
